Struts 2 Simple Login Example
In this section you will learn how to develop a simple login application using Struts 2.
In the below example , we incorporate the following things :
- JDK1.6
- Tomcat 6.x
- Eclipse Galileo 3.5.0
- Struts 2.0.14

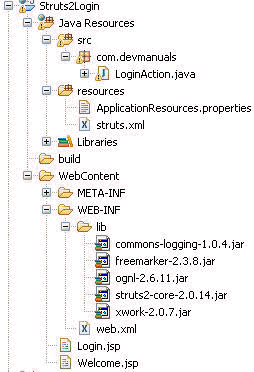

The project hierarchy is given below :
APPLICATION FLOW

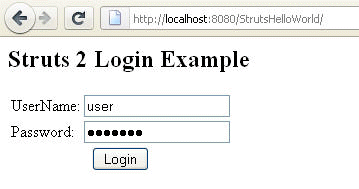

First, the login page will appear : (UserName is user & Password is user007)

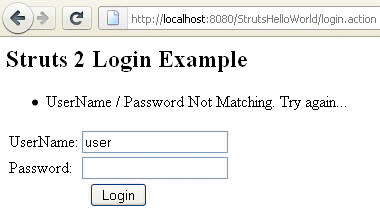

If login is incorrect following will appear to you :

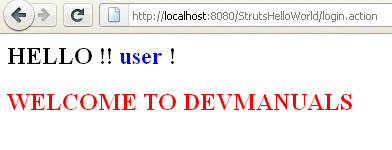

If login is correct, following will appear to you :
CODE
web.xml ( /Struts2Login/WebContent/WEB-INF/web.xml )
<?xml version="1.0" encoding="UTF-8"?> <web-app id="WebApp_9" version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"> <display-name>Struts2 Application</display-name> <filter> <filter-name>struts2</filter-name> <filter-class> org.apache.struts2.dispatcher.FilterDispatcher </filter-class> </filter> <filter-mapping> <filter-name>struts2</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <welcome-file-list> <welcome-file>Login.jsp</welcome-file> </welcome-file-list> </web-app>
struts.xml ( /Struts2Login/resources/struts.xml )
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN" "http://struts.apache.org/dtds/struts-2.0.dtd"> <struts> <constant name="struts.enable.DynamicMethodInvocation" value="false" /> <constant name="struts.devMode" value="false" /> <constant name="struts.custom.i18n.resources" value="ApplicationResources" /> <package name="default" extends="struts-default" namespace="/"> <action name="login" class="com.devmanuals.LoginAction"> <result name="success">Welcome.jsp</result> <result name="error">Login.jsp</result> </action> </package> </struts>
ApplicationResources.properties ( /Struts2Login/resources/ApplicationResources.properties )
label.username= UserName label.password= Password label.login= Login error.login= UserName / Password Not Matching. Try again...
Login.jsp ( /Struts2Login/WebContent/Login.jsp )
<%@ page contentType="text/html; charset=UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <html> <head> <title>Devmanuals.com-Hello World Struts Tutorial</title> </head> <body> <h2>Struts 2 Login Example</h2> <s:actionerror /> <s:form action="login.action" method="post"> <s:textfield name="username" key="label.username" size="20" /> <s:password name="password" key="label.password" size="20" /> <s:submit method="execute" key="label.login" align="center" /> </s:form> </body> </html>
Welcome.jsp ( /Struts2Login/WebContent/Welcome.jsp )
<%@ page contentType="text/html; charset=UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <html> <head> <title>Welcome</title> </head> <body> <h2>HELLO !! <font color=blue><s:property value="username" /> </font>!</h2> <h2><font color=red>WELCOME TO DEVMANUALS</font></h2> </body> </html>
